TabletKiosk 7520J Hands-Free Scanner
$250.00

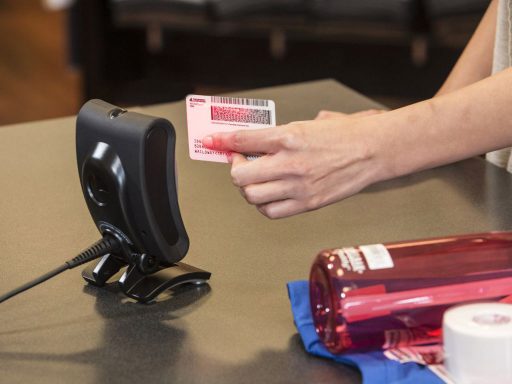

The TabletKiosk 7520J Orbital Scanner is a presentation area-imaging scanner engineered to decode all standard 1D, PDF and 2D barcodes. Its revolutionary imaging technology is housed in an elegant, yet durable design. The 7520J scanner redefines industry standards by enabling the reading of barcodes efficiently on both printed documents and highly reflective displays like mobile phone screens. Breakthrough performance and a versatile form factor make the TabletKiosk 7520J suitable for environments ranging from healthcare to school food service to retail POS.
The TabletKiosk 7520J is a hands-free presentation area-imaging scanner that is designed to decode all standard 1D, PDF and 2D barcodes on both printed documents as well as on highly reflective, transmissive displays such as those found on mobile phones.
Technical Specifications
MECHANICAL
Dimensions (L x W x H): 88 mm x 82 mm x 156 mm
Weight: 246 g
ELECTRICAL
Input Voltage: 5.5V DC ±0.25V
Operating Power: 2.0 W (400 mA @ 5V)
Standby Power: 0.5 W (100 mA @ 5V)
Host System Interfaces: USB, RS-232, Keyboard Wedge
ENVIRONMENTAL
Operating Temperature: -15°C to 55°C
Storage Temperature: -30°C to 70°C
Humidity: 5% to 95% relative humidity, non-condensing
Drop: Designed to withstand 1.5 m (5 ft) drops
Environmental Sealing: Sealed to resist airborne particulate contaminants
Light Levels: 100,000 Lux
SCAN PERFORMANCE
Scan Pattern: Area Image (832 x 504 pixel array)
Motion Tolerance: 200 cm/s (78 in/s) for 13 mil UPC at optimal focus
Scan Angle: Horizontal: 46°; Vertical: 28°
Print Contrast: 20% minimum reflectance difference
Pitch, Skew: 70°, 75°
Decode Capability: Reads standard 1D, PDF, 2D, Postal, and OCR symbologies. Note: Decode capabilities dependent on kit configuration.
Warranty: 3-year factory warranty
