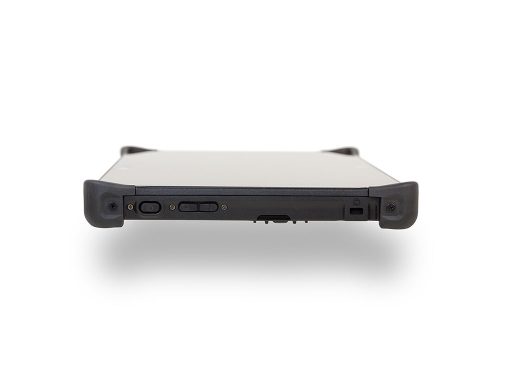

Ares TufTab T11X Rugged Tablet


  • Intel® Core i5-5200U
  • 11.6″ Multi-Touch Display
  • 4.0GB DDR3L-1333 (up to 8.0GB optional)
  • 128GB SSD (up to 512GB SSD optional)
  • IP65, MIL-STD-810G and C1D2
  • WIFI 802.11a/b/g/n/ac
  • Bluetooth 4.0
  • 2.0 MP Front facing camera
  • 5.0 MP Rear facing camera
  • Windows 10 Pro

NOTE: This product is subject to a $5.00/unit state imposed Electronic Waste Fee when shipped to an address within California.

Estimated delivery by 09/23/2019

SKU: ST-11XT-3237 Categories: , Tags: , , ,

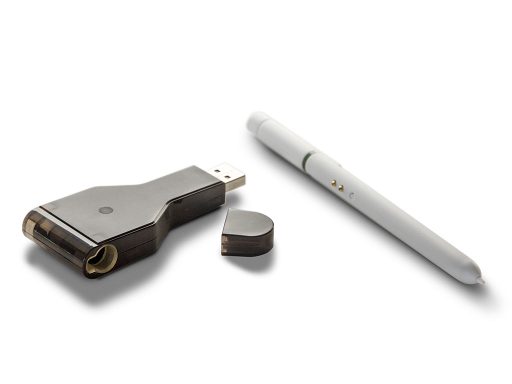

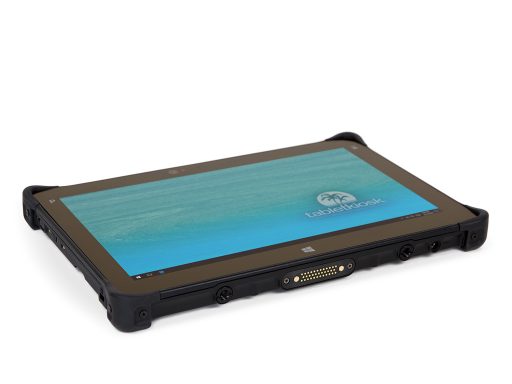

The Ares TufTab® (pronounced Air-Ease) T11X Tablet features a fifth generation Intel® Core™ i5 processor for superior performance, runs Windows® 10 Pro, Windows® 8.1 Pro and Windows® 7 operating systems, sports a 1366×768 LED backlit display with 10-finger touch and chemically strengthened tempered glass, plus an optional digitizer pen with palm rejection for superior productivity. At less than an inch thick, spill proof and dust proof (IP65 rated), meets Class 1 Division 2 certification for use in hazardous environments, and is MIL-STD-810G compliant for superior durability and usability, the Ares TufTab is the ultimate technological companion for nearly any environment. Additionally it features a high bright, outdoor readable screen option, advanced Wi-Fi and LTE wireless networking capabilities, advanced data collection expandability and long battery life; all while weighing under 2.75 lbs.Armed with an Ares TufTab T11X, your workforce will be productive and connected no matter where their job takes them.

  Download printable Ares TufTab Product Sheet

Additional information

Weight 10 lbs
Dimensions 14 × 7 × 14 in

Intel® Core™ i5-5200U (2.2GHz/2.7GHz max, 15W TDP)
Two (2) cores, four (4) threads
3.0 MB 12-way Intel® Smart Cache (12-way associative shared cache)


Standard configuration: 4.0 GB 1333MHz DDR3L
Configurations up to 8.0 GB
64-bit wide memory channel

Data Drive

128GB M.2 type 2242 SATAIII SSD (up to 512GB optional)

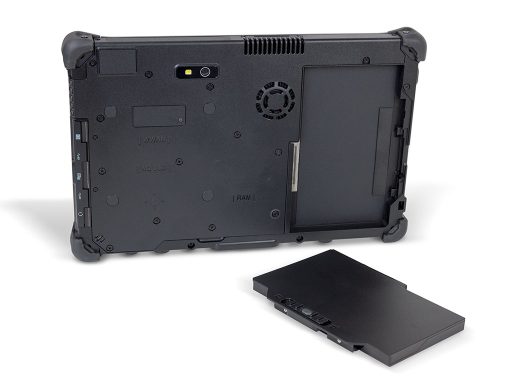

Lithium-Ion Polymer pack (3S1P)
4,100mAh / 11.1V / 46Wh
Charge voltage: 12.6V
Battery life (operating): up to 7 hours
Stand-by charging time: 3.5 hours (@ 25°C)


Integrated Intel® HD Graphics 5500
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 900 MHz


Screen size (diagonal): 11.58 inches (294mm)
FWXGA (1366×768) TFT LCD with LED Backlight
Contrast ratio: 800:1
Standard panel.: 400 nits
SLR (optional): 700 nits


Intel Dual-Band 802.11 a/b/g/n/ac, Maximum Speed: 300/867 Mbps
Dual Mode Class 1 Bluetooth 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)


Ambient Light

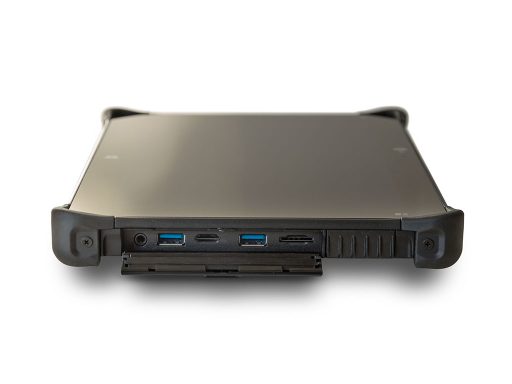

I/O Ports

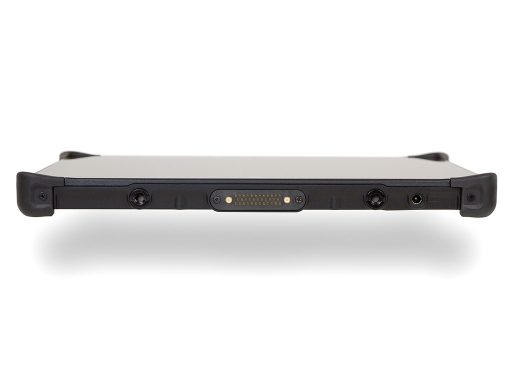

POGO pin Docking Connector (bottom) with power pass-thru, USB 3.0 and HDMI data lines
Expansion connector (back) with power pass-thru, RS-232 and 2x USB 2.0
Kensington Lock Port
2x USB 3.0
3.5 mm Audio In/Out combo port, supports mic/headset (CTIA standard)
MicroSDXC card slot
SIM Card slot


2.0MP Front-facing (f/2.0 1080p @ 30fps)
5.0MP Rear-facing (f/2.8 1080p @ 30fps)


Ingress Protection: rated IP65 (dust tight / water jet protected)
Drop Rating: MIL-STD-810G 516.6 procedure IV (modified): 1.22m (4 feet) with unit powered on
Vibration: MIL-STD-810G 514.6 procedure I cat. 24, fig. 514.6E-1 with unit powered on
Altitude: MIL-STD-810G method 500.5: operating: 15,000 feet, non-operating: 40,000 feet
Operating Temperature: MIL-STD-810G 501.5 procedure II (modified): -10°C ~ +50°C (+14°F ~ +122°F)


Energy Star 6.1 compliant
RoHS/REACH compliant
EPEAT Silver compliant


Standard 1 year Limited Warranty, Optional Extended Warranties are available by contacting or calling +1 310-782-1201
